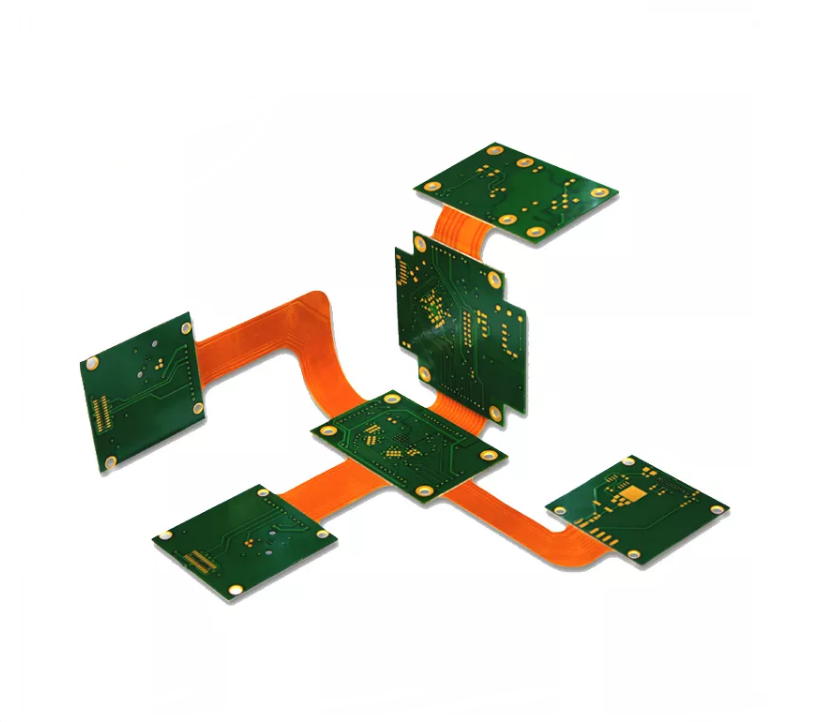

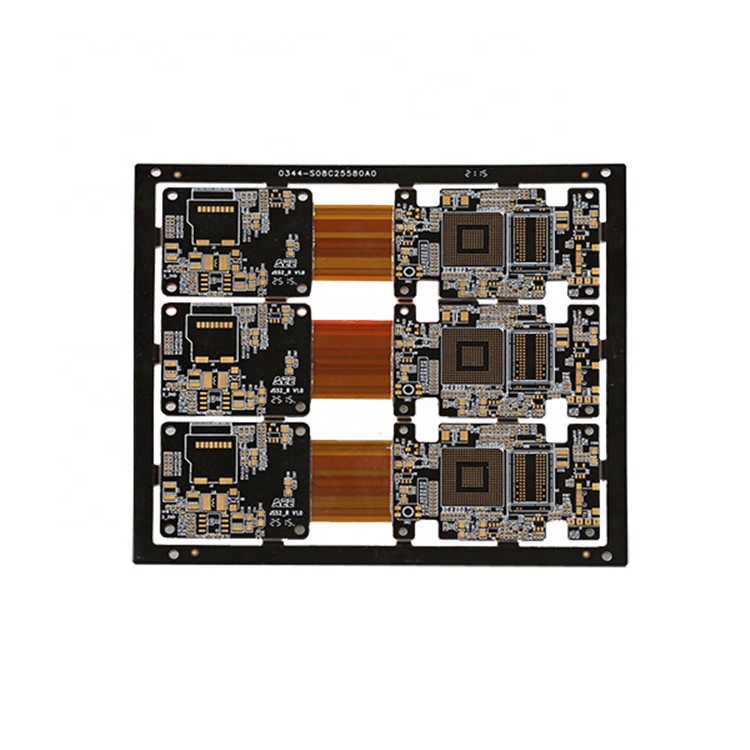

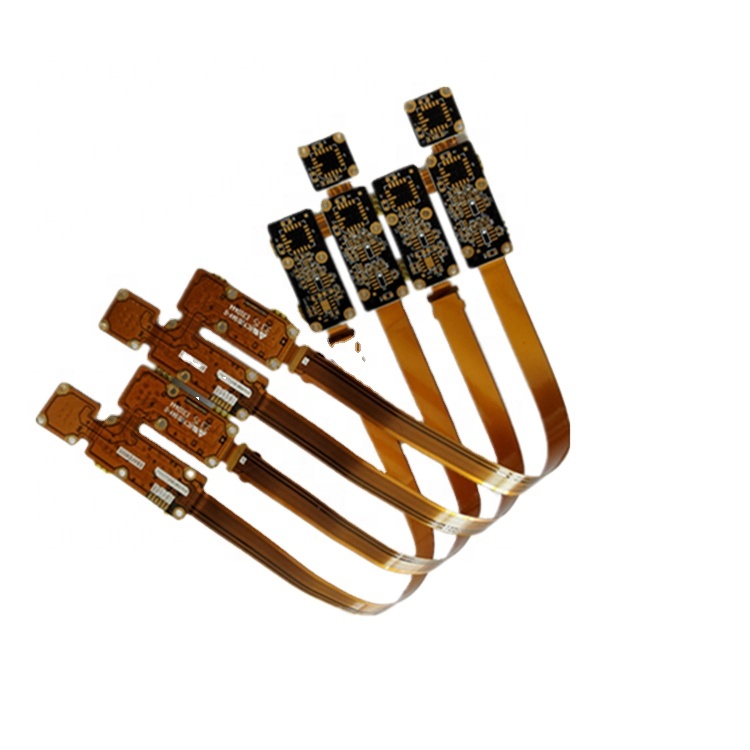

OEM/ODM Rigid-Flex PCB with High Quality Printed Circuit Board Manufacturer in China
The main SMT production line consists of automated high-precision state-of-the-art equipments from PanasonIC,Sumsung, Japan total 6 lines (Smallest SMT components size can reach to 0201,capable of 0.6mm*0.3mm ~ 50mm*50mmQFP, 0.15mm gap, ±0.05 accuracy ),
EMS capacity can reach 150,000,000 components per month.
Our engineering team has extensive experience in DFM/DFA/DFT technologies.
SMT, BGA Rework, Re-balling, X-Ray are all readily achieveable. Stencils can
be cut and delivered inside of 4 hours.
Our Advantages:
1, Factory Area:60000㎡ Shenzhen factory; two other factories in US and Vietnam.
2, Quality Control:IPC-1-610E Standard,E-test,X-ray,AOI Test,IQC,QC,QA,100% Functional Test

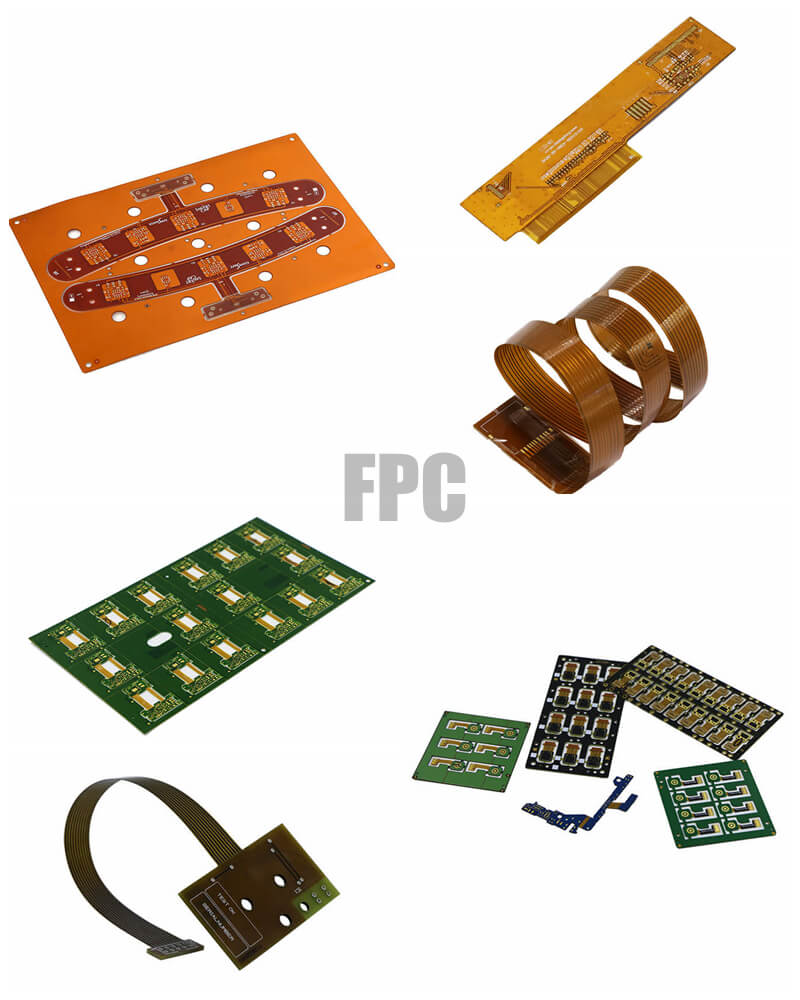

3, PCB Making (Rigid, Flexible,Rigid-Flexible,Aluminium, High TG,Ceramic), Component Sourcing, SMT&DIP, Free Program & Test, OEM/ODM Serivce
4, Certifcation:ATF 16949,ISO 13485,ISO 14001,ISO9001,UL(E326838),Disney FAMA, CE,FCC,ROHS,
| PCB Manufacturing Capability |
| PCB Layers: | 1Layers to 18 layer (Max) |
| Board thickness: | 0.13~6.0mm |
| Min line width/space: | 3mil |
| Min mechanical hole size: | 4mil |
| Copper thickness: | 9um~210um(0.25oz~6oz) |
| Max aspect ratio: | 1:10 |
| Max board size: | 400*700mm |
| Surface Finish: | HASL, immersion gold, immersion silver,immersion tin, flash gold, gold finger,peelable mask |
| Material: | FR4,High Tg, Rogers, CEM-1, CEM-3, Aluminum BT, PTFE. |
FAQ: 1.How does a printed circuit board assembly (PCB assembly) work?
The primary function of a PCB assembly is to integrate the electronic components of a device into a compact or defined space. Acting as the central hub of the electronic circuit of a device, the PCB provides insulation for all other electrical components, allowing them to be safely connected to a power source.
2.Can you ship to my contract manufacturer for the final build?
Yes, we can ship your assemblies for final production. We can also offer turnkey, box build, and labor-only services
3.Where do you manufacture your products?
We have production plant based in shenzhen,China; Fremont,US,Bac Ninh,Vietn
